WWI U-boat Types

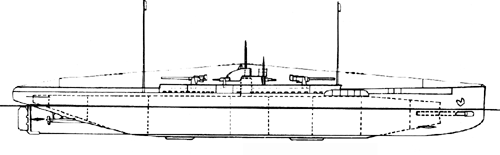

Type U 151

U-Cruisers and Merchant U-boats class


Construction history of type U 151

U-boats# ShipyardWerk #Built during
U 151 - U 1533Reiherstiegw., Hamburg1916 - 1917
U 154 - U 1552Flensburger Schiffbau381- 3821915 - 1917
U 156Atlas Werke, Bremen3821916 - 1917
U 157Stülcken Sohn, Hamburg1916 - 1917

These boats were designed and built to be large commercial submarines for shipping material to and from locations otherwise denied German surface ships. All surviving boats (7) were converted to U-boat cruisers in 1917.

2 of those were operational as commercial boats, Deutschland (Paul König) and Bremen. Deutschland successfully went on 2 commercial patrols before being commissioned into the Navy on 19 Feb, 1917 as the U 155.

Bremen, launched in 1916, was lost on her first patrol early in 1917 along with entire crew under uncertain circumstances (possibly mined). Number of casualties unknown. She was never part of the German Navy.

All U-boats of type U 151

Below are the 7 commissioned U-boats of this type.

U 151, U 152, U 153, U 154, U 155, U 156 and U 157

Technical information for type U 151

Displacement:
(tons)
1512 (sf)
1875 (sm)
2272 (total)
Length: (m)65,00 oa
57,00 ph
Beam: (m)8,90 oa
5,80 ph
Draught: (draft)5,30 m
Height:9,25 m
Power: (hp)800 (sf)
800 (sm)
Speed:
(knots)
12,4 (sf)
5,2 (sm)
Range:
(miles / knots)
25000/6 (sf)
65/3 (sm)
Torpedoes:18
2/0 (bow / stern tubes)
Mines:No mines carried
Deck gun:2 105mm
1672 rounds
Crew:56 men
Max depth:ca. 50 m
(164 feet)
sm = submerged, sf = surfaced, ph = pressure hull,
oa = overall, hp = horsepower.
