WWI U-boat Types

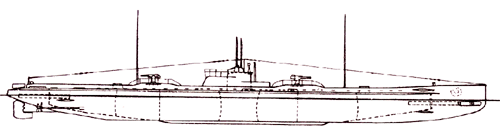

Type U 27

Ocean-going diesel-powered torpedo attack boats class


Construction history of type U 27

U-boats# ShipyardWerk #Built during
U 27 - U 304Kaiserliche Werft, Danzig17- 201912 - 1914

All U-boats of type U 27

Below are the 4 commissioned U-boats of this type.

U 27, U 28, U 29 and U 30

Technical information for type U 27

Displacement:
(tons)
685 (sf)
878 (sm)
971 (total)
Length: (m)64,70 oa
52,36 ph
Beam: (m)6,32 oa
4,05 ph
Draught: (draft)3,48 m
Height:7,82 m
Power: (hp)2000 (sf)
1200 (sm)
Speed:
(knots)
16,4 (sf)
9,8 (sm)
Range:
(miles / knots)
9770/8 (sf)
85/5 (sm)
Torpedoes:6
2/2 (bow / stern tubes)
Mines:No mines carried
Deck gun:105mm
300 rounds
Crew:35 men
Max depth:ca. 50 m
(164 feet)
sm = submerged, sf = surfaced, ph = pressure hull,
oa = overall, hp = horsepower.
