WWI U-boat Types

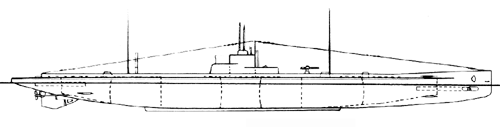

Type U 19

Ocean-going diesel-powered torpedo attack boats class


Construction history of type U 19

U-boats# ShipyardWerk #Built during
U 19 - U 224Kaiserliche Werft, Danzig13- 161910 - 1913

All U-boats of type U 19

Below are the 4 commissioned U-boats of this type.

U 19, U 20, U 21 and U 22

Technical information for type U 19

Displacement:
(tons)
650 (sf)
837 (sm)
(total)
Length: (m)64,15 oa
50,50 ph
Beam: (m)6,10 oa
4,05 ph
Draught: (draft)3,58 m
Height:8,10 m
Power: (hp)1700 (sf)
1200 (sm)
Speed:
(knots)
15,4 (sf)
9,5 (sm)
Range:
(miles / knots)
7600/8 (sf)
80/5 (sm)
Torpedoes:6
2/2 (bow / stern tubes)
Mines:No mines carried
Deck gun:105mm
300 rounds
Crew:35 men
Max depth:ca. 50 m
(164 feet)
sm = submerged, sf = surfaced, ph = pressure hull,
oa = overall, hp = horsepower.
