WWI U-boat Types

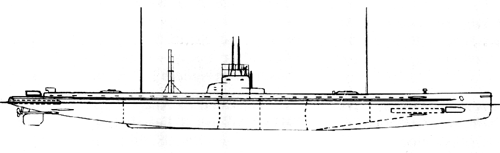

Type U 9

Gasoline-powered boats class


Construction history of type U 9

U-boats# ShipyardWerk #Built during
U 9 - U 124Kaiserliche Werft, Danzig4- 71908 - 1911

All U-boats of type U 9

Below are the 4 commissioned U-boats of this type.

U 9, U 10, U 11 and U 12

Technical information for type U 9

Displacement:
(tons)
493 (sf)
611 (sm)
(total)
Length: (m)57,38 oa
48,00 ph
Beam: (m)6,00 oa
3,65 ph
Draught: (draft)3,15 m
Height:7,05 m
Power: (hp)1000 (sf)
1160 (sm)
Speed:
(knots)
14,2 (sf)
8,1 (sm)
Range:
(miles / knots)
3300/9 (sf)
80/5 (sm)
Torpedoes:6
2/2 (bow / stern tubes)
Mines:No mines carried
Deck gun:105mm
300 rounds
Crew:35 men
Max depth:ca. 50 m
(164 feet)
sm = submerged, sf = surfaced, ph = pressure hull,
oa = overall, hp = horsepower.
